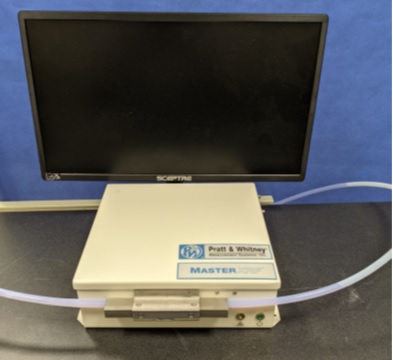

* One measurement tubing line shown

Technical Specifications

Element range Chlorine (Cl, 17) to Uranium (U, 92) (up to 55 elements simultaneously)
Design Fully enclosed X-Ray system with mechanical positioning mechanism for up to 4 measurement tubing lines



Dimensions

External Dimension:

W x H x T

Instrument only : 400 x 490 x  170 mm (15.7 x 19.3 x 6.7 in)

Instrument + Enclosure : 800 x 1000 x 300 (31.5 x39.4 x 11.8
Weight 14 kg (31 lb.) + 39 Kg ( 86 lb. ) enclosure



X-ray Source and Detection

X-ray tube Low Power X-ray tube 4W with Rh or W target
High voltage Three settings: 30 kV; 40 kV; 50 kV
Primary filter Changeable:  Al 250 µm; Al 500 µm Al 750 µm
Collimator 1 or 2 mm Ø
X-ray detector Silicon-drift-detector (SDD)
Detector area 20 mm²
Detector resolution Fwhm < 130 eV (at Mn-Kα)



Electrical and Environmental data

Power supply AC 100-240 V    50 -60 Hz
Power consumption ≤ 70 VA



Environmental conditions

Operating temperature 10°C – 50°C (50°F – 104°F)
Storage temperature 0°C – 50°C (32°F – 122°F)
Humidity ≤ 95 %, non-condensing



Standards

CE approval EN 61010 , EN 61326 [available with CE certification]
X-ray standards DIN EN ISO 3497, ASTM B 568
Approval Individual acceptance approval per §12 StrlSchG   (German radiation ordinance) Complies to US Standard ANSI/HPS N43.3 Radiation Safety for X-ray diffraction and fluorescence analysis equipment
