XRF Instruments - MasterXRF

The Standard of Accuracy

The MasterXRF® instruments are X-ray fluorescence spectrometers for the inline analysis of plating solutions in the electroplating industry. It is the ideal instrument for industrial process control, improving product quality, and saving money.

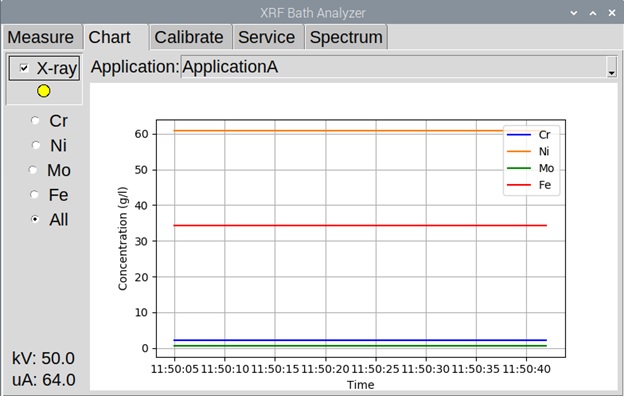

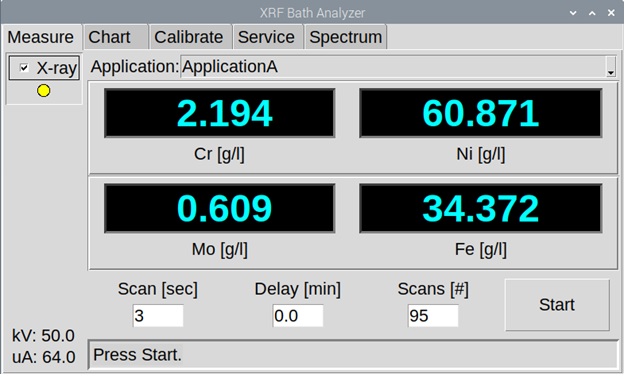

The instrument allows for the continuous, fully automatic monitoring of metal concentration in plating baths such as alkaline or acidic  ZnNi , Cr and Co passivation solutions , as well as elemental Cr, Fe ,Ni, Cu, Zn, Pd, Ag, Sn and Au.  Up to four separate plating lines can be measured sequentially with the option to set up individual measurement programs for each line. The solution can be pumped directly from the plating tank that connects to the instrument’s measurement tubing. This unique design eliminates the need for a specific solution  measuring cell or a manifold assembly requiring flushing or cleaning of the solution lines. Operation of the instrument is through an easy-to-use touch screen user interface and nearly maintenance free. Quantification is accomplished utilizing a state-of-the-art fundamental parameter (FP) software.



Technical Specifications

Element range Chlorine (Cl, 17) to Uranium (U, 92) (up to 55 elements simultaneously)
Design Fully enclosed X-Ray system with mechanical positioning mechanism for up to 4 measurement tubing lines



External Dimension:

W x H x T

Instrument only : 400 x 490 x  170 mm (15.7 x 19.3 x 6.7 in)

Instrument + Enclosure : 800 x 1000 x 300 (31.5 x39.4 x 11.8

Weight 14 kg (31 lb.) + 39 Kg ( 86 lb. ) enclosure


X-ray Source and Detection

X-ray tube Low Power X-ray tube 4W with Rh or W target
High voltage Three settings: 30 kV; 40 kV; 50 kV
Primary filter Changeable:  Al 250 µm; Al 500 µm Al 750 µm
Collimator 1 or 2 mm Ø
X-ray detector Silicon-drift-detector (SDD)
Detector area 20 mm²
Detector resolution Fwhm < 130 eV (at Mn-Kα)


Electrical and Environmental data

Power supply AC 100-240 V    50 -60 Hz
Power consumption ≤ 70 VA


Environmental conditions

Operating temperature 10°C – 50°C (50°F – 104°F)
Storage temperature 0°C – 50°C (32°F – 122°F)
Humidity ≤ 95 %, non-condensing



CE approval EN 61010 , EN 61326 [available with CE certification]
X-ray standards DIN EN ISO 3497, ASTM B 568
Approval Individual acceptance approval per §12 StrlSchG   (German radiation ordinance) Complies to US Standard ANSI/HPS N43.3 Radiation Safety for X-ray diffraction and fluorescence analysis equipment
