Labmaster Universal Model 1000M Accessories
INCLUDED ACCESSORIES |
|
U306277 | Ruby Tipped Probes: 1-49 inch (25-1245mm) ID, 0-48 inch (0-1220mm) OD |
U306513 | Horseshoe |
U306496 | Table Clamps (3) |
U306519 | Rotating Locating Posts /Small (2) |
U307538 | Rotating Locating Posts /Large (2) |
U307741 | Table Adapter (2) |
U307858 | Slot Protector Set |
SETUP/TRAINING (Included within United States; International-upon request) |
|
SC-MC | GageCal for Windows Training (4 hours/2 students) |
SC-OP | Additional Operator Training (8 hours/2 additional students) |
SC-AP | Application Training (if purchasing accessories for internal/external threads) |
SC-FT |
Post-sale Refresher Training (1-day / 2 students). Cost includes: All travel/living expenses. Training certificates are provided to satisfy ISO 17025 training requirements. |
WARRANTY (1-year included) |
|
WR-2Y | Additional 1-Year Warranty |
OPTIONAL INTERNAL ACCESSORIES |
|
U306276 | Internal Single Probe: 0.02, 0.079, 0.157, 0.236 inch balls (0.5, 2, 4, 6 mm balls) |
U600130 | Clamp for Small Rings (using Internal Single Probe) |
U307458 | Probe Bases, Adjustable (requires Internal Dual Probe Tips) (for easier alignment of small ID probes) |
U600127 | Probe Bases, Adjustable with 0.040-0.125 inch (1.00-3.18 mm) Internal Dual Probes (Note 1) |
U306433 | 0.040-0.125 inch (1.00-3.18 mm) Internal Dual Probes (Note 1) |
U306434 | 0.125-0.250 inch (3.18-6.35 mm) Internal Dual Probes (Note 1) |
U306435 | 0.250-1.000 inch (6.35-25.4 mm) Internal Dual Probes (Note 1) |
U306488 | Probe Reference |
U308634 | Internal Thread Probe (11 pr screw-in tips, 5.5-48 TPI, 0.585-40” ID, (4.5-0.5 pitch, 15-1016 mm ID)) *for solid thread rings |
U308633 | Internal Thread Probe (11 posts, 5.5-40 TPI, 0.10-40” ID, (4.5-0.7 pitch, 2.5-1016 mm ID)) *for solid thread rings |
U307262 | Variable Reach ID/OD Probes with Replaceable Ruby Tips |
307258 | Spherical Carbide Tip, 0.125 inch [3.175 mm] diameter (used with U307262) |
U307429 | Variable Height ID/OD Probes (non Abbe compliant) |
U308438 | Ruby Tipped (ID/OD) Probes, 2.5" (63.5mm) height (non Abbe compliant) NEW |
U308342 | ID/OD Probes with Replaceable Tips, 2.125" (53.9mm) height (non Abbe compliant) NEW |
U308343 | High Accuracy Indicator & Stand |
U307472 | ID Gear/Spline/Roller Bearing Raceway Probes |
U307334 | Axial Internal Clearance Kit (for roller bearings) |
U307326 | Radial Internal Clearance Kit (for roller bearings) |
U308380 | Internal Dual Probes 0.5-1.0 inch (12.7-25.4 mm) (larger vertical reach to 1.5 inch; better repeatability) |
U600008 | Micrometer Holder - vertical (for extra large micrometers) |
OPTIONAL EXTERNAL ACCESSORIES |
|

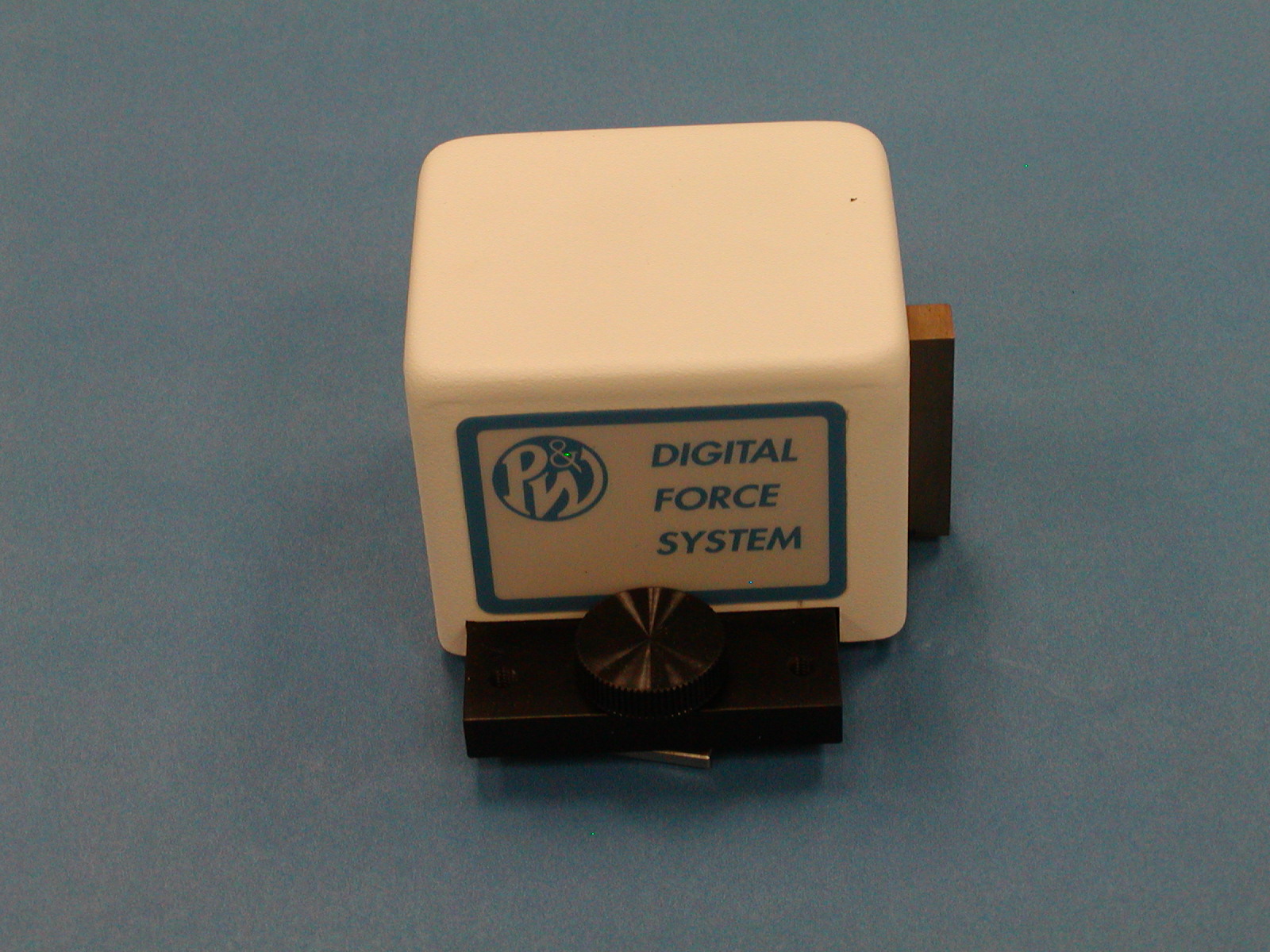

U308508 | Digital Adjustable Force System |
U307602 | Precision Probe Positioner (replaces U306465) |
D10543004 | High Precision Adjuster (used with U307602) |
U307630 | Flat Probes 0.375 inch diameter (Note 1) (6.5 mm & 8 mm upon request) |
D10512010 | Torque Wrench with bit (for flat probes) |
308418 | Bridge for Table Center Slot (for measuring small artifacts) NEW |
U306517 | Ball Checker (to check parallelism on flat probes) |
302558 | Flatted Cylinder |
U307631 | Tapered Flat Probes (1 degree, 47 minutes) (Note 1) |
306905 | Tapered Master Plug |
U302595 | Magnetic Wire Holders |
307775 | V-Block (each) (for long square gage blocks and end standards) |
U306512 | Riser Disc Assembly (set of 3) |
U306514 | Backstop |
U306515 | Angle Block (please purchase #U306465; Probe Positioner) |
U306516 | Dual Horseshoe Clamp |
U306691 | V-Block for Cylinders/Discs |
U306784 | Lead Fixture Assembly |
U600108 | Lead Probes (tilted styli) |
U306722 | Lead/*Gear Probes (includes 3.5mm gear stylus & 6 pair lead stylus) *additional gear stylus quoted separately |
U307263 | Blade Probes: 0.016 inch [0.4064 mm] thick, Carbide (Note 1) |
U307270 | Small Diameter Flat Probes, 0.100 inch [2.54 mm] diameter (Note 1) |
U307528 | Thread Micrometer Standard Measuring Kit |
U307610 | Two-Point Bore Gage Kit |
U307653 | Gage Block Fixture (5-point positioner –rectangular blocks) |
U308657 | Extension Probes, ID/OD w/ risers (40 inch - 80 inch) [1016mm-2032mm] |
U307761 | V-Clamp, Dial Indicator/Micrometer Head/Ball |
U600142 | Large Micrometer Head Fixture |
U308460 | Extended Range Supports (pair) (40 inch - 80 inch) [1016mm-2032mm] - for measuring long gage blocks, ball bars, end standards |
U308658 | Extension Probes, ID/OD (80 inch - 120 inch) [2032mm-3048mm] (risers not included; please purchase #U308607) |
U308698 | Extended Range Supports (pair) (80 inch - 120 inch) [2032mm-3048mm] (for measuring long gage blocks, ball bars, end standards) |
309052 | Rectangular Gage Block Holder (each) (for measuring 4 inch [100mm] and larger rectangular blocks) |
U600020 | Kit 7 inch Tall Flat Probes & Spacers |
ADDITIONAL OPTIONAL ACCESSORIES |
|
U305754 | Remote Control Foot Switch |
306890 | Common Bases for Customer Supplied Probes |
U308712 | 2.5 inch [63.5 mm] Riser Bases for Probes |
U306790 | 2 inch [50.8 mm] Riser Bases for Probes |
U308607 | 1.125 inch [28.5 mm] Riser Bases for Probes (used with U308658) |
U308353 | Digital Adjustable Force System Kit (contains flat probes, force system, torque wrench, probe positioner) ** |
U308773 | 2.5 inch [63.5 mm] Riser Kit (contains risers for force system and probe positioner) |
U307596 | 1 inch [25.4 mm] Riser Bases for Probes |
U600026 | Small ID Probe Kit (contains Internal Dual Probes: 0.04-0.125",0.125-0.25",0.25-1.0") ** |
D10559029 | Table w/ Shelf; 30 inch x 84 inch (762 x 2133 mm), 3-Drawer, 2-Door, Blue |
D10501027 | LCD Stand (recommended if not purchasing table) |
U307417 | Color Printer with Cable |
D10074004 | Keyboard Stand |
D10069007 | Monitor, 20 inch [508 mm] LCD with adj. stand (in lieu of standard LCD monitor) |
U308377 | Air Compressor with Dryer (110v; call for 220v) |
U308020 | Master Cylinders: 0.125 inch & 0.75 inch [3.175 & 19.05 mm](for measuring thread wires) |
D10562015 | Taper Ring Gage (1.5 inch; 3/4 inch TPF) [38.1 mm; 1/16 taper] |
D10588001 | Thread Wire Set - English (4-80 TPI) (34 sets in wood box) |
D10588002 | Thread Wire Set - Metric (0.2-10mm) (30 sets in wood box) |
D10588003 | Thread Wire Set - English (4-80 TPI) (34 sets in wood box) with long form certificate |
D10588004 | Thread Wire Set - Metric (0.2-10mm) (30 sets in wood box) with long form certificate |
MS-GA4 | Master Gages (10 Gage Blocks (Croblox), 5 Ring Gages (Steel)) |
U600177 | Master Gages (10 Gage Blocks (Steel), 5 Ring Gages (Steel)) |
D10562013-C | Master Ring Gages – (NIST traceable, steel, ISO 17025, sizes: 0.04, 0.125, 0.25, 1.0, 3.0 inch) |
D10562016-C | Master Ring Gages – (NIST traceable, steel, ISO 17025, sizes: 0.04, 0.125, 0.25, 1.0, 3.0, 5.0 inch) |
D10562011-C | Master Ring Gages - (NIST traceable, steel, ISO 17025, sizes: 1, 3, 6, 25, 75, 125 mm) |
U308333 | 40 inch Master Ball Bar - Steel (1 Meter) |
U308359 | 80 inch Master Ball Bar - Invar (2 Meters) |
U600067 | Part Temperature Compensation Kit |
D10501046 | Mylar Poncho (to minimize operator thermal radiation) |
U308400 | Quick Table Clamp (each) NEW |
U308358 L306955 |
Internal Thread Probe (partial set, 5 posts, A-B-C-G-H) Screw-in Tips for ID Threads (6 pair tips, A-F) |
U308630 | Screw-in Tips for ID Threads (5 pair tips, G-K) |
D10555053 | Screw-in Tip for ID Threads (each; need 2, L) for 4-5.5 TPI |
D10555061 | Screw-in Tip for ID Threads (each; need 2, M) for 4-5.5 TPI |
U306785 | Posts for ID Threads (6 posts, A-F) |
U308629 | Posts for ID Threads (5 posts, G-K) |
D10554025 | User's Manual |
U308366 | Spare Parts Kit (LMU-1000M) |
D10575011 | Shipping Container (LMU-1000M; does not include brackets) |
D10575999 | Crating for International Shipping |
D10551003 | Tsunami Compressed Air Filter w/ Regulator (please inquire if needed) |
U308432 | Environmental Weather Station/Data Logger |
Note 1: If not purchased with instrument, requires on-site service (align, lap, or internal adjustment). P&W field service rates available upon request.
** Available only with instrument purchase.
PURCHASE INFORMATION |
|
PURCHASE ORDER TO: | Pratt & Whitney Measurement Systems, Inc. 66 Douglas Street, Bloomfield, CT 06002-3619 Telephone: (860) 286-8181 Fax: (860) 286-7878 Fed ID#57-1156437; D&B#121250877; Cage Code#3EQQ7 ISO/IEC 17025:2017 accredited by A2LA |
FOB: | Bloomfield, CT USA (Ex works for international shipments) |
TERMS: | Net-30 days upon approved credit |
PRICES: | Please call for latest pricing. See P&W Terms & Conditions dated 09/18/2021; v2.2 QA-SO-1 |
SHIPPING/HANDLING: | Pre-pay-add or collect (handling fee applies for collect shipments) |
